What are the differences between different forms of washers?

06/04/2016 3 Comment(s)

There are several different forms of flat washers, designated by a letter code from A to G.  Some are only available in a particular finish, but what exactly do the different forms stand for?

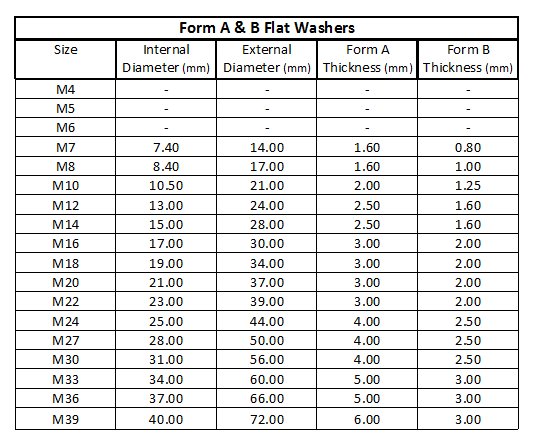

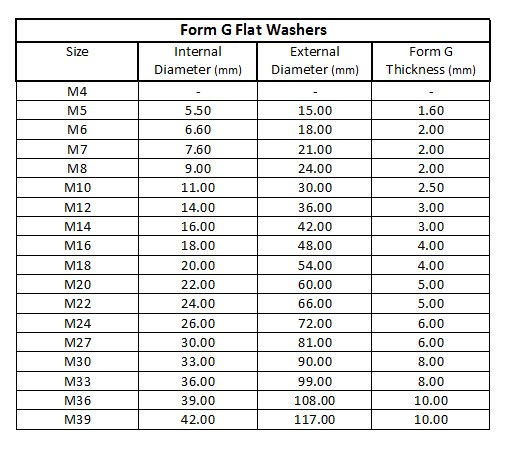

Simply put, each washer has to have certain dimensions to be classed in a type of form, so no matter where you buy from or where the item was manufactured, all washers designated the same form will have the same measurements.  In the images below, you can see what the measurements are for the most common washers we stock.   By using these tables we can see that an M10 Form A washer will have an internal diameter of 10.5mm, an external diameter of 21mm and be 2mm thick.  If any of these measurements are not correct on the manufactured part, is can not be called a Form A washer.

It's important to note that there are tolerances allowed within the specification.  This is usually 1mm either side of the dimension stated. The thickness is usually correct as the products are made from sheets of raw material, which in turn have their own specifications and standard thicknesses.

3 Comment(s)

Vivian Letherby:
19/11/2020, 05:08:45 PM, Form C washer

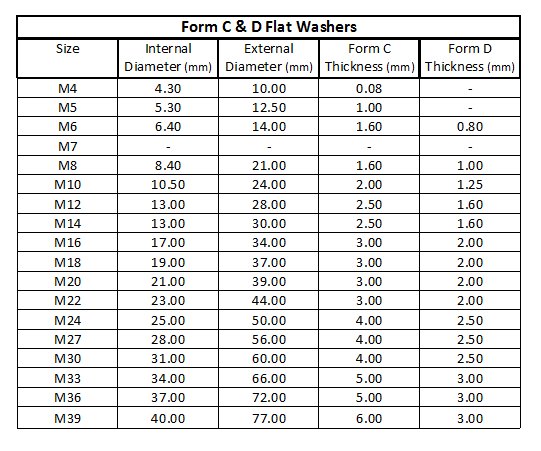

Please check rhe thickness ot the 4mm form C washer. I think it should be 0.8 not 0.08mm.

09/09/2021, 01:39:58 AM

0.8mm not 0.8m otherwise that's an insanely thick washer :p

Graeme Harvey:
11/02/2021, 03:18:03 PM

Hi Vivian, Thanks for spotting that. Yes it is 0.8m thick.

02/02/2022, 11:38:19 AM


02/02/2022, 11:37:18 AM,


02/02/2022, 11:37:20 AM


Mr Brian Siarey:
26/05/2022, 01:01:02 AM,

hi I cannot view these charts, (What are the differences between different forms of washers?), please could you send the pdf's or let me know how they can be seen? Kind regards Brian
